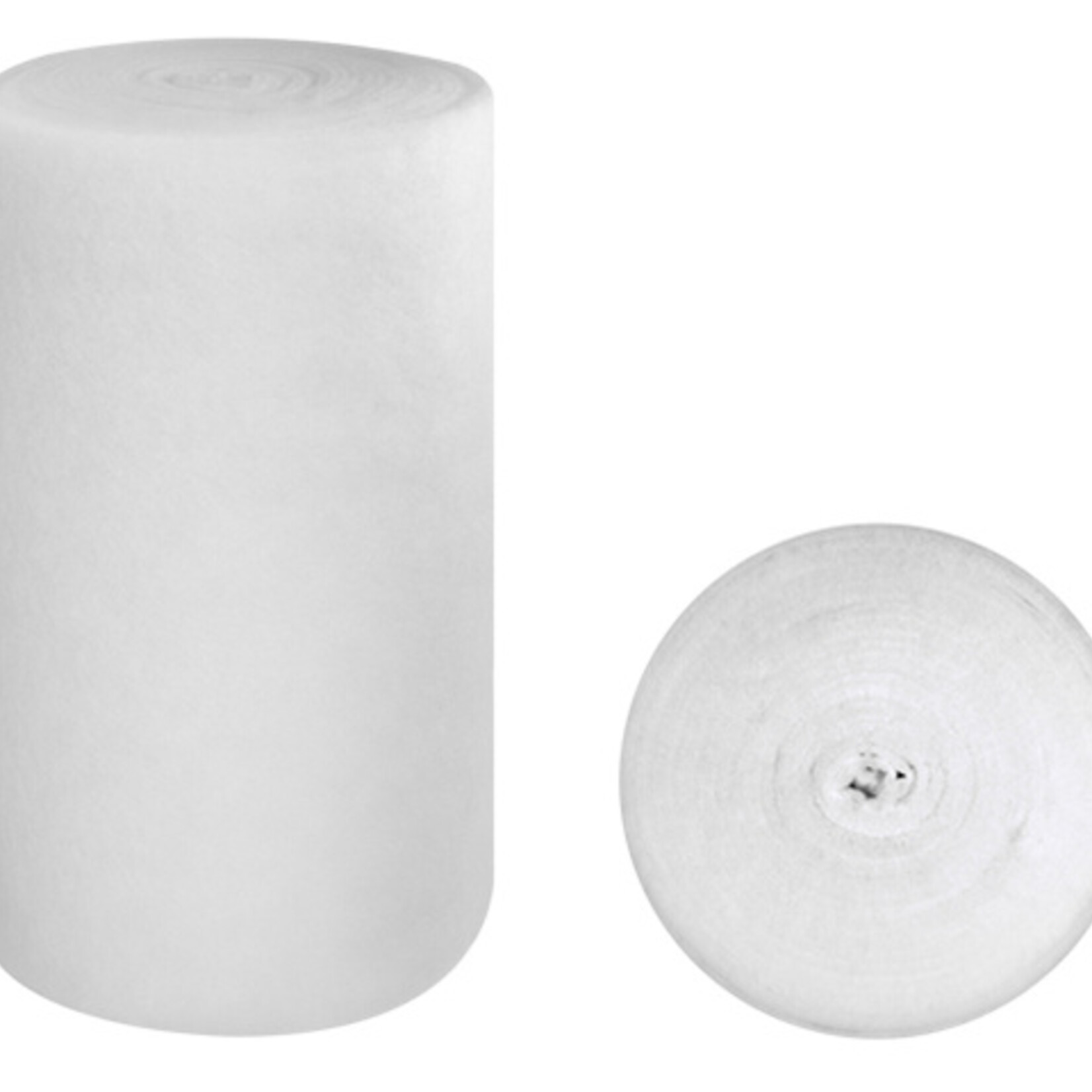

The synthetic filter media by Solana is a high-quality prefiltration material designed for ventilation and air handling systems. Manufactured from 100% thermally bonded synthetic fibers, it ensures reliable filtration performance, effective dust retention, and controlled pressure drop.

Classified as EN 779 G2–G3 and ISO 16890 Coarse 50%, the P150 filter media is suitable for industrial filtration, HVAC systems, and general air filtration applications. Its consistent structure provides stable airflow and extended service life.

Key features

• Filter class: G2–G3 / Coarse 50%
• Material: 100% synthetic fibers
• Production method: thermally bonded
• Low to medium initial pressure drop
• Good dust holding capacity
• Temperature resistance up to 100 °C
• Flame retardancy: F1 (DIN 53438)

Technical specifications

• Thickness: approx. 10 mm
• Average gravimetric efficiency: 78–82 %
• Nominal airflow: 5400 m³/h/m²
• Air velocity: 0.7 – 1.5 – 2.5 m/s
• Initial pressure drop: 7 – 34 Pa
• Recommended final pressure drop: 150 – 250 Pa
• Regenerability: limited
• Standard dimensions: 2 × 20 m
• Color / airflow direction (IN–OUT): white / white
